BARRICADE BRACKETS - Parallel Fixing

Parallel Fixing Barricade Bracket

Unique locating channel design - stops lateral movement

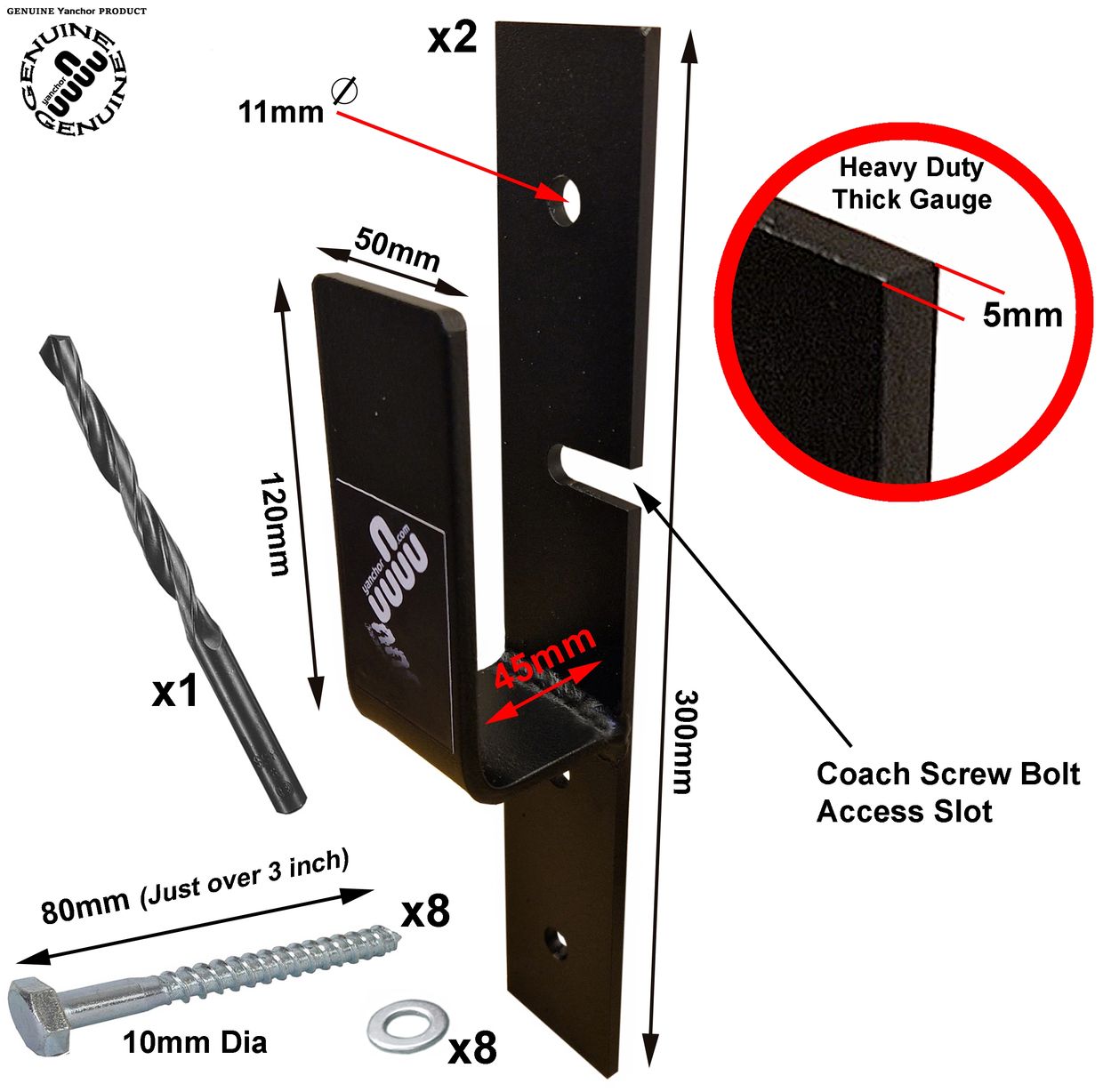

This superior quality security barricade bracket is made from 5mm steel not like others on the market which are only 3 or 4mm in thickness and 50mm wide unlike others that are only 40mm in width.

Black powder coated industrial textured finish.

Fits 45mm x 95mm wood (NOT INCLUDED) this is a standard size available at most of the major DIY stores, some people call these 4 inch by 2 inch but it is actually 3-3/4 inch by 1-3/4inch.

Heavy Duty very strong full seam welds.

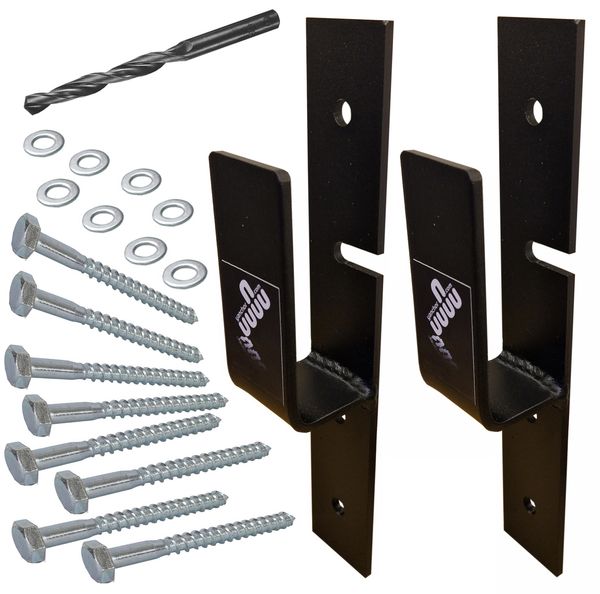

Each kits includes

2 x Heavy Duty Door Barricade Brackets,

1 x Drill Bit,

8 x M10 x 80mm Coach Screw Bolts with washers, offering far more security than normal shorter wood screws and with a larger head giving even more strength.

When fitting to brick, wall plugs and a masonry drill bit must be used (NOT INCLUDED).

When fitting to a PVC frame the supplied coach screw bolts should be replaced by threaded coach bolts and fitted with the nuts on the inside. (NOT INCLUDED).

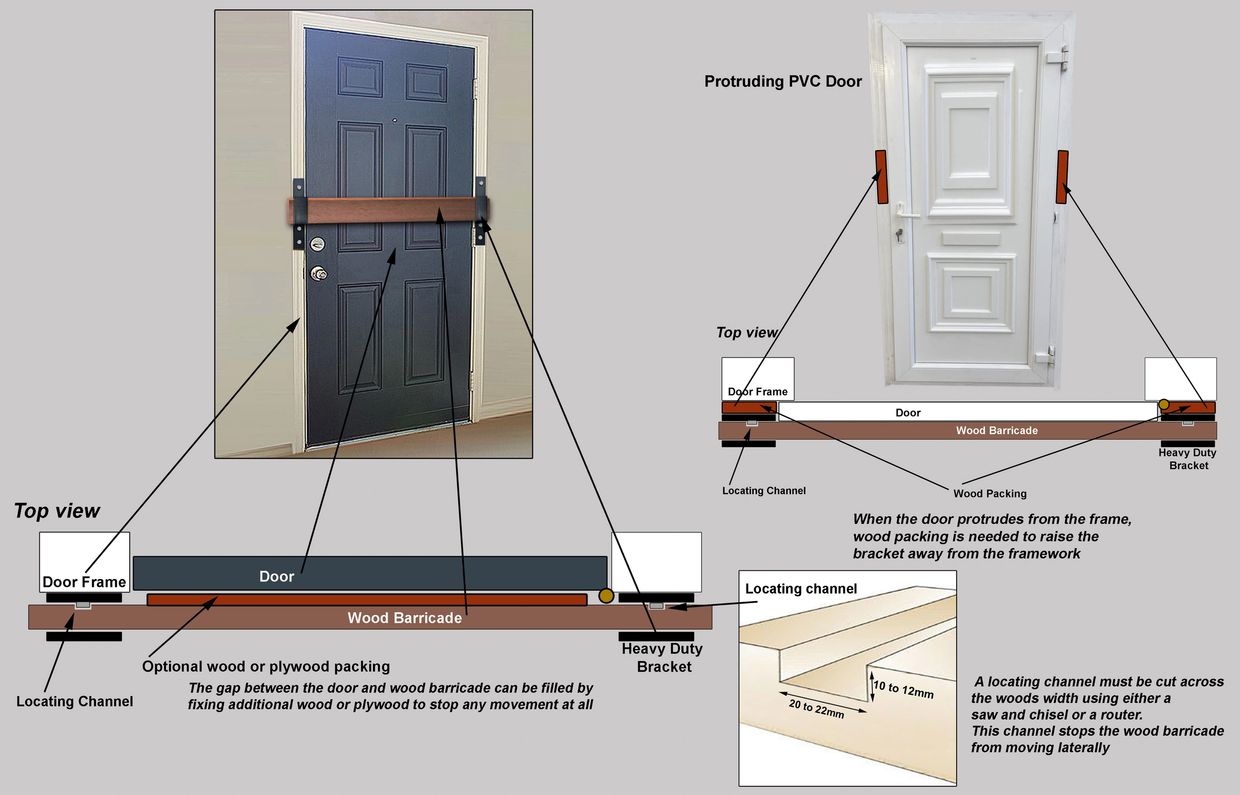

Optional, the gap between the door and wood barricade can be filled

by fixing additional wood or plywood to stop any movement at all. (SEE FITTING INSTRUCTIONS)

When the door protrudes from the frame, wood packing is needed to raise the bracket away from the framework. (SEE FITTING INSTRUCTIONS).

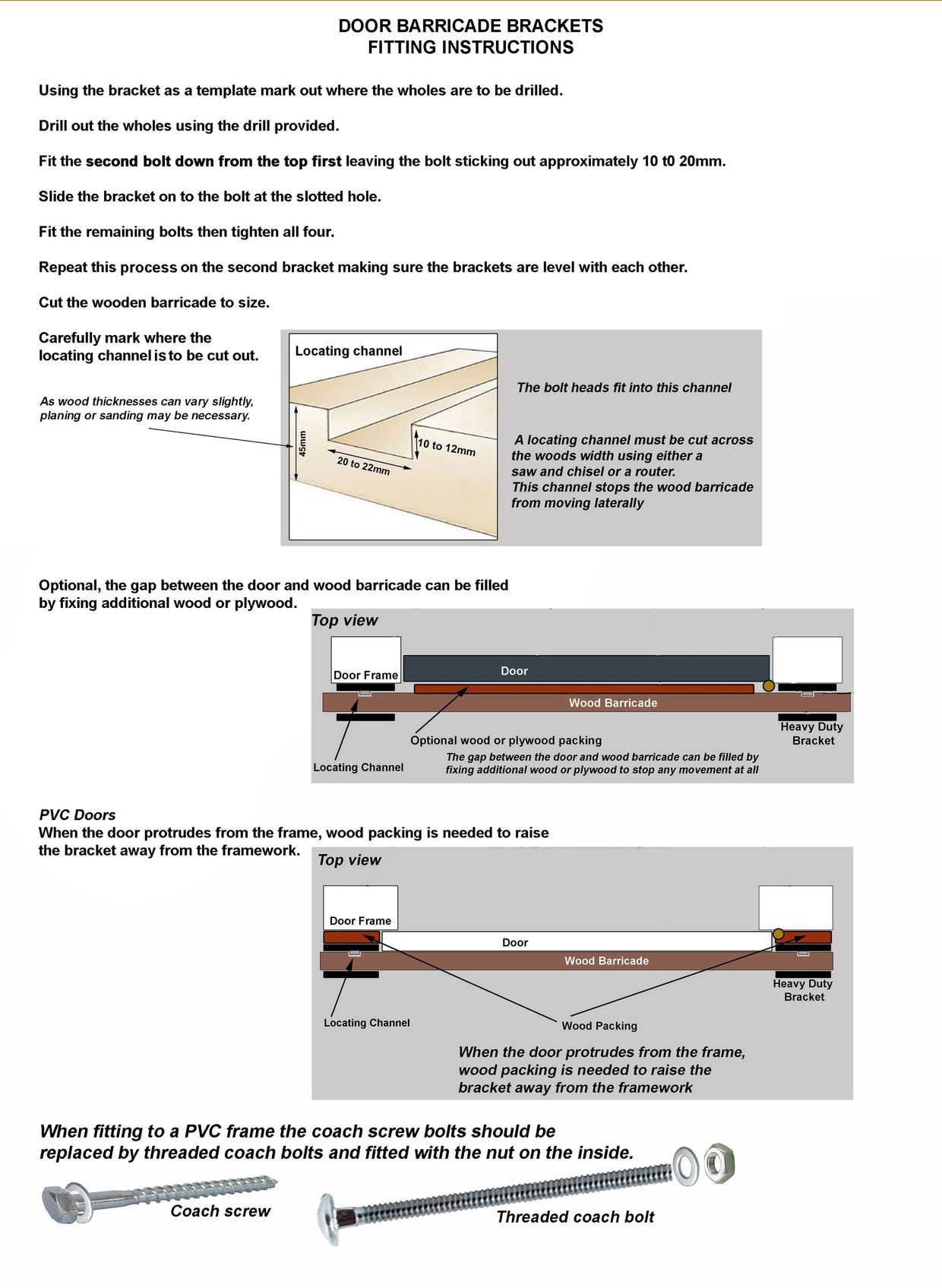

fitting instructions

UK £53.00 (£6.99 shipping)

International none UK Sales see our ebay Global Shipping listings.

Y anchor Security Products | eBay Stores

Please note the Paypal button below is for UK sales only.

PLEASE DON'T HESITATE TO TELEPHONE OR EMAIL IF YOU HAVE ANY QUERIES.

Tel: INT +44 0191 2159738 / 07540465886

email: k9benson@btinternet.com

MULTIPLES AND COMBINED ORDERS such as Anchors – Hasps – Padlocks – Alarms or shed wall fixing anchors email your requirements with contact tel number to k9benson@btinternet.com and we will send you a no obligation PayPal invoice.

For your garden furniture - Bench seats, Summerhouses, Arbours, Swing sets, Gazebos etc secure them with our heavy-duty SECURITY BRACKETS

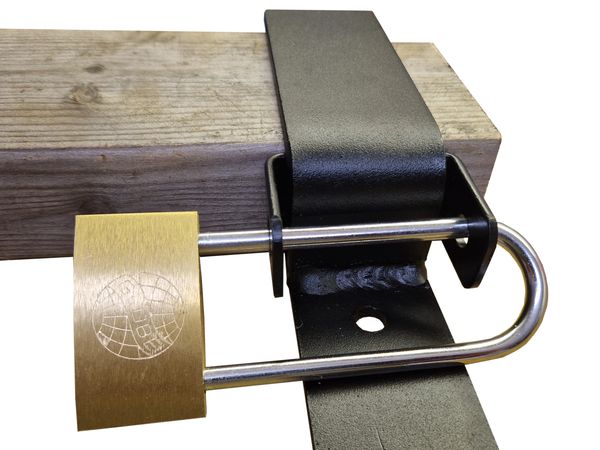

PARALLEL BARRICADE BRACKETS - LOCKING KIT

Our Locking Kits give another layer of security to any Drop in Parallel Barricade Brackets.

Padlocks are fitted at each end of the Door Barricade.

Ideal for doors with glass panels or for use on outdoor applications, gates etc.

WARNING if the door is the only means of fire escape padlocks are best not fitted.

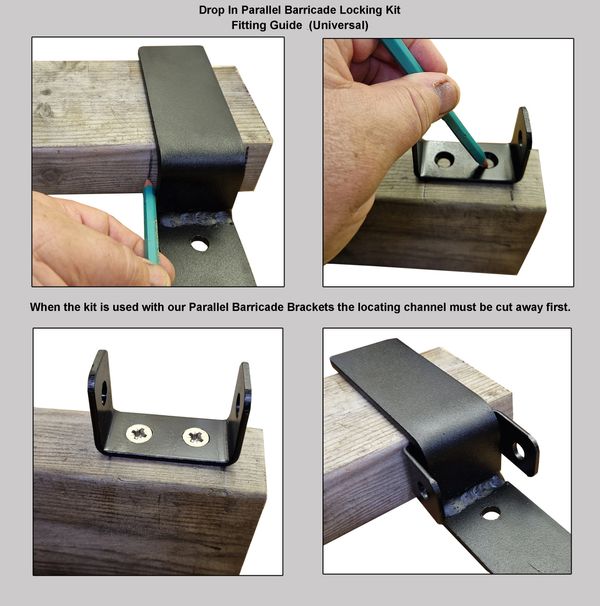

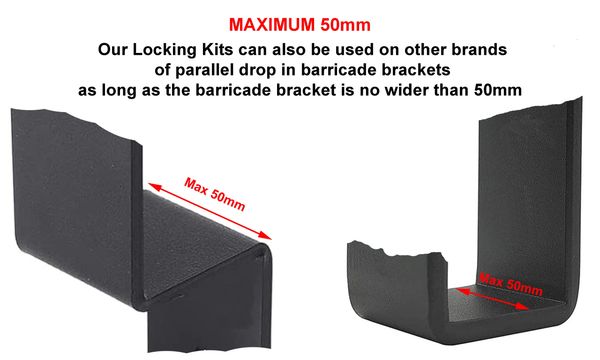

The Fitting Guide image shows the locking kit attached to wood for use on other brands of Barricade Brackets. When the kit is used with our brackets the locating channel must be cut out from the wood first.

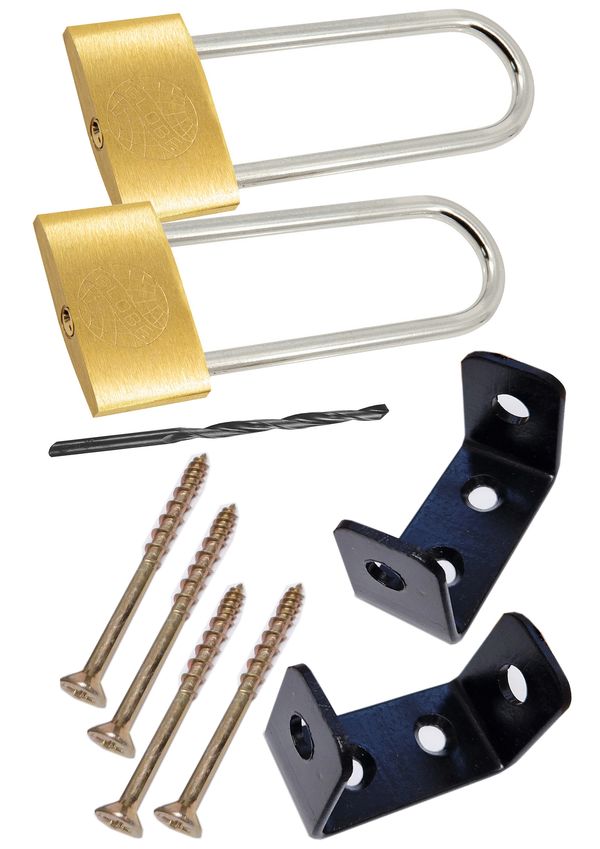

Locking Kit Contents

2 x padlock housing brackets with 11mm padlock holes.

4 x 6mm x 70mm screws.

2 x Extra Long Shackle (110mm) Padlocks

1 x 2.8mm Drill Bit.

UK sales only.

Locking kit £32.50 plus £4.10 P&P

FREE P&P when purchased with the Parallel Fixing Brackets.

email k9benson@btinternet.com with your requirements to receive a Paypal invoice.

PLEASE DON'T HESITATE TO TELEPHONE OR EMAIL IF YOU HAVE ANY QUERIES.

Tel: INT +44 0191 2159738 / 07540465886

Small Profile, 90degree FIXING

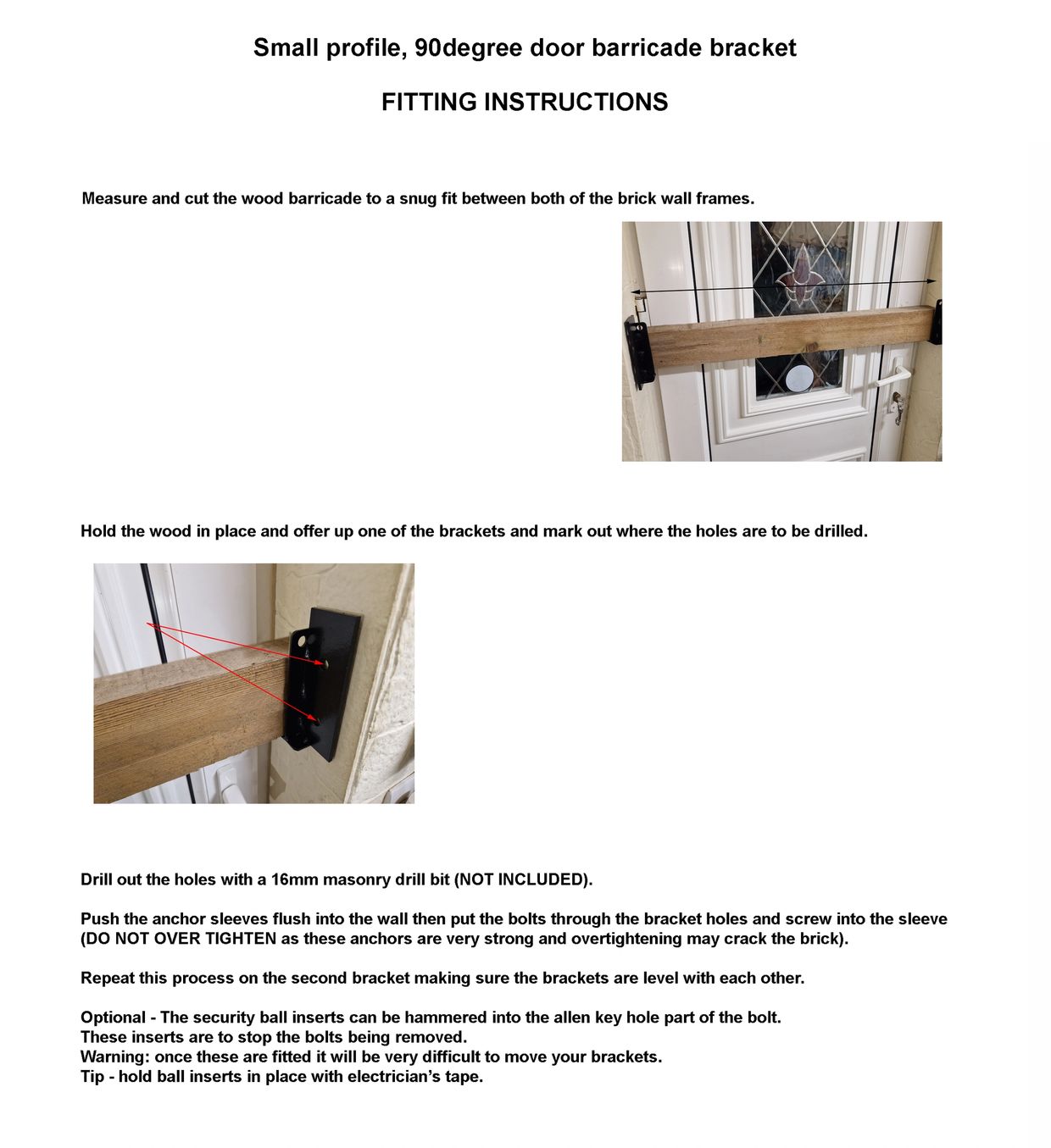

Heavy Duty Door Barricade Brackets Small profile, 90degree fixing.

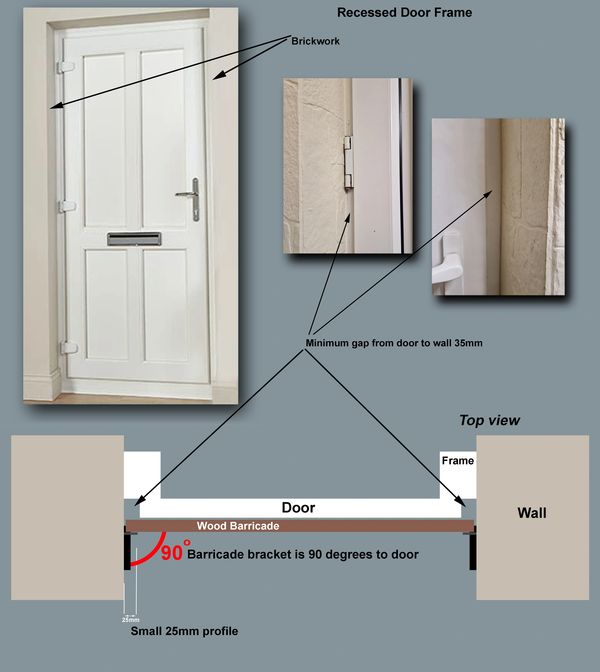

This superior quality security barricade bracket is designed to secure doors which have a small surrounding frame, to a minimum of 35mm. The hinge side of the door would be better to have a wider frame than 35mm so that the door doesn’t hit up against the bracket when the door is fully opened.

Fits 45mm x 95mm wood (NOT INCLUDED) this is a standard size available at most of the major DIY stores, some people call these 4 inch by 2 inch but it is actually 3-3/4 inch by 1-3/4inch.

11mm padlock hole. With the padlocks fitted they prevent easy removal of the wood barricade, ideal for doors with a glass panels. WARNING if the door is the only means of fire escape padlocks are best not fitted

(NOT INCLUDED).

Black powder coated industrial textured finish.

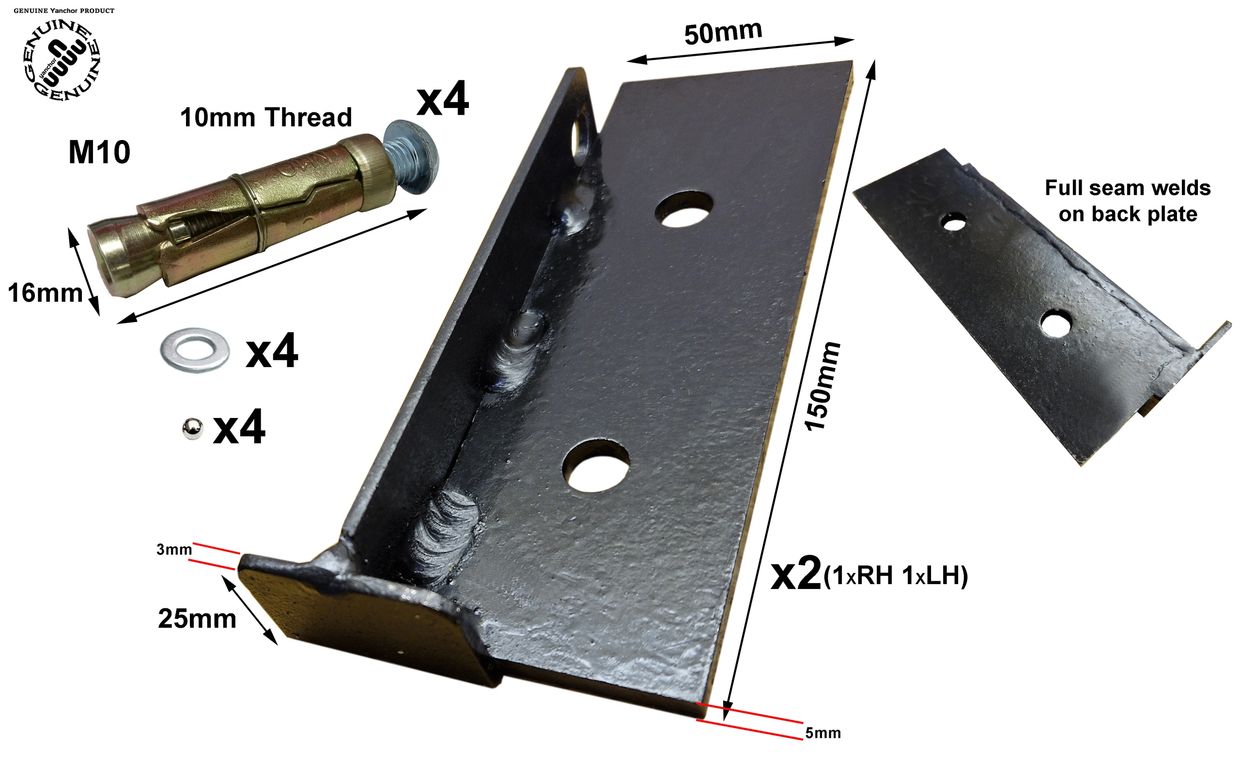

Each kits includes

2 x Heavy Duty Small profile, 90degree Door Barricade Brackets,

4 x M10 x 75mm Heavy Duty Security Anchor Shield Bolts,

4 x Security ball inserts,

1 x Hex allen key.
